1561S / 1561TJ Series Suface Mount Hishear® Emlock®
Documents Library

The SDC Hi/Shear® 1561S and 1561TJ are surface mounted, high security, failsafe locking mechanisms with superior appearances. The patented Hi/Shear® electromagnetic lock design incorporates a “floating” armature assembly and special alloy steel locking “tabs” on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors.

Hi/Shear® magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames.

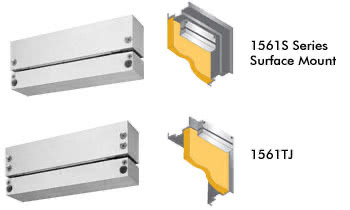

1561S
SDC HiShear® Electromagnetic Shear Lock, Surface Mount, 2000lbs, 12/24VDC,628 Anodized Aluminum
1561TJ
SDC HiShear® Electromagnetic Shear Lock, Top Jamb Mount, 2000lbs, 12/24VDC,628 Anodized Aluminum.
Applications
  • Lateral and Vertical Alignment Adjustment
  • Door Static Sensor
  • Field Adjustable Shear Stops
  • Auto Sensing 12/24VDC Input
  • ANSI/BHMA Grade 1 Conpliant
  • BHMA Certified Holding Force
  • UL, CSFM, MEA Listed
