25 Series

Value 5/8” Latchbolt Electric Strikes

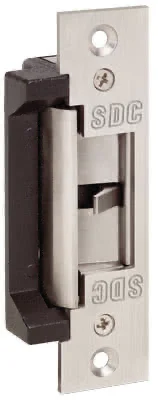

SDC’s 25 series value 1/2” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and metal frames. 25 series strikes accept 1/2” throw latchbolts or up to 9/16” throw latchbolts with 1/8” door gap.

The compact low profile design with an internally mounted solenoid and factory supplied mounting tabs enables quick and easy installation where jamb space is limited. The heavy duty construction makes 25 series strikes ideal for high traffic installations.

Centerline latch entry strikes require the latch to enter at the strike “centerline” located exactly between the top and bottom of the strike faceplate.*

* Refer to installation instructions and template to determine strike location prior to frame preparation for new and retrofit installations.

x See Datasheet For More Info
  • UL 1034 Burglary-Resistant Electric Locking Mechanisms
  • ANSI/BHMA A156.31
25-4U
Value 1/2” Latchbolt Strike, 630, LS
BR64XL
AC to DC Bridge Rectifier
1 See Complete List
