UniFLEX™ 45 Universal Electric Strike/Door Release
UniFLEX™ 45 Universal
Electric Strike/Door Release

The SDC 45 electric strike is designed for use with locksets with up to 3/4” latchbolts*. The quality construction makes the 45 series ideal for high traffic applications. The compact low profile design enables quick and easy installation where jamb space is limited.

Choose from a Universal Electric Strike package that includes three faceplates or standard strike package with choice of 4 different faceplates to accomodate virtually any application. Full monitoring is standard.

SDC Patented.

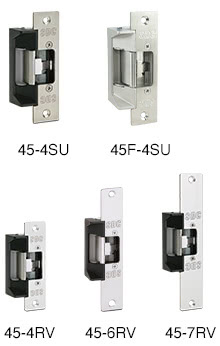

45-A SDC Universal Electric Strike with 3 Different faceplates, Failsecure/Failsafe, 12/24V AC/DC, SPDT Latch Postition Status, SPDT Keeper Closed and Deadlocked/Unlocked Status, Mounting Tabs. 3 Faceplates: 4S Stainless Steel, 4R & 7R Aluminum Finish.
45-4S SDC Electric Strike, Failsecure/Failsafe, 12/24V AC/DC, SPDT Latch Postition Status, SPDT Keeper Closed and Deadlocked/Unlocked Status, 4-7/8” Square Corner Faceplate, Mounting Tabs.
45-4R SDC Electric Strike, Failsecure/Failsafe, 12/24V AC/DC, SPDT Latch Postition Status, SPDT Keeper Closed and Deadlocked/Unlocked Status, 4-7/8” Radius Corner Faceplate, Mounting Tabs.
45-6R SDC Electric Strike, Failsecure/Failsafe, 12/24V AC/DC, SPDT Latch Postition Status, SPDT Keeper Closed and Deadlocked/Unlocked Status, 6-7/8” Radius Corner Faceplate, Mounting Tabs.
45-7R SDC Electric Strike, Failsecure/Failsafe, 12/24V AC/DC, SPDT Latch Postition Status, SPDT Keeper Closed and Deadlocked/Unlocked Status, 7-15/16” Radius Corner Faceplate, Mounting Tabs.
Features
  • For 5/8" latch or 3/4" latch with 1/8" door gap
  • Latch position status standard Keeper closed & deadlocked/unlocked status standard
  • Field selectable failsecure - failsafe
  • Field selectable voltage, 12/24V AC/DC 1/4" Horizontal alignment adjustment
  • Low profile, 1-3/16" deep
  • Plug-in wire connectors
  • Mounting tabs Non-handed
  • All stainless steel parts with durable die cast body for corrosion resistance
  • Fewer moving parts for maximum life
  • Stainless steel standard with square corner faceplate
  • Aluminum standard with radius corner faceplate
  • ANSI/ BHMA A156.31, Grade 2
