350 Narrow Line Magnetic Lock

350 Series
Magnetic Lock

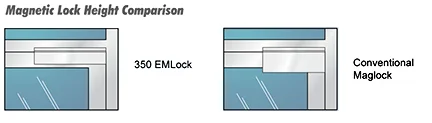

The 350 narrow line magnetic lock series provide 1200lbs holding force and failsafe access control for perimeter and interior doors that meets building security and fire life safety code requirements. The 350 series is specifically designed for high profile openings that require less obtrusive surface mount lock with architecturally superior appearance. Unlike typical surface mount magnetic locks that project 3 to 3-1/2 inches into openings, the SDC 350 Narrow Line magnetic lock projects only 2-11/16 into the opening, enabling it to blend in exceptionally well with virtually any narrow frame. SDC narrow line magnetic locks are the best solution available to maintain the architectural aesthetics high profile door entrances.
350 1200lbs holding force with Dual12/24VDC input
u Features
  • 1200lbs holding force with Dual12/24VDC input
  • Magnetic Bond Sensor and Door Status Sensor and LED Status indicator are standard, enabling distributors to stock one lock and eliminate need for special orders.
  • Internal wire chamber with PC board mounted terminal blocks permits wiring before or after lock mounting
  • Interlocking Quick Mount Bracket leaves hands free for fast, easy screw fastening and wiring
