SK Series

Schlage L9000 Mortise Lock Field Electrification Kits

SK Series

Schlage L9000 Mortise Lock Field Electrification Kits

Convert Mechanical Lock into Electric Access Controlled Lock.
Fast electrification of existing locks in the field. Failsafe and Failsecure options are easily selected and can be changed in the field to suit any need. Optional Request-To-Exit kit provides indication of inside lever operation for alarm shunt,remote annunciation or CCTV activation.

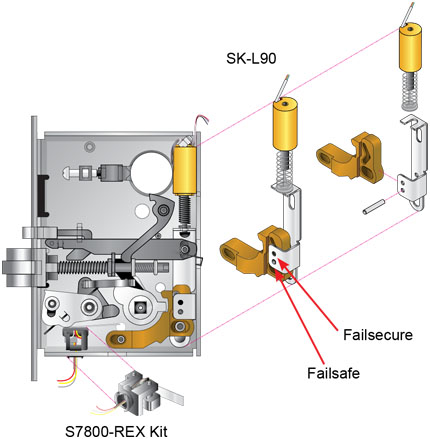

SK-L90 Field Retrofit Electrification Kit for Schlage L9070 Mechanical Mortise Lockset. 600/300 mA @ 12/24VDC

SK-L90-SC Field Retrofit Electrification Kit, including Springcage for Schlage L9080 Mechanical Mortise Lockset 600/300 mA @ 12/24VDC

S7800-REX Request-to-exit kit for Schlage L9000 indicates inside lever operation for access control input, alarm shunt, remote annunciation or CCTV auxiliary device activation. SPDT 5 AMP @ 30VDC



u Features
  • Reversible Failsafe or Failsecure
  • 12VDC or 24VDC Input
  • Installs Quick & Easy
