1580 Series
Electromagnetic Door Lock

ANSI Grade 1, Modular Magnetic Lock, 650 lbs Holding Force. Field upgradeable outputs and servicing without removing from the door frame.

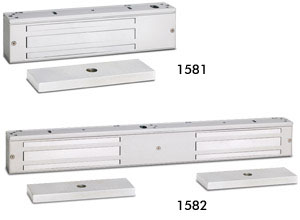

1581 SDC EMLock® Magnetic Lock, Surface Mount, Single, 650 lbs, 12/24VDC

1582 SDC EMLock® Electromagnetic Lock, Surface Mount, Double, 650 lbs, 12/24VDC

  • 650 lbs Holding Force Autosensing 12/24 VDC Voltage Input
  • Choice of 6 anodized & plated finishes
  • ANSI/BHMA Grade 1 Compliant
  • BHMA Certified Holding Force
  • UL, CSFM, MEA Listed
  • UL 294 Listed (6th Ed.) - Access Control Performance Levels are Level I for Line Security. Destructive Attack, Standby Power, and Level IV for Endurance.
