E75 Privacy Series

Standalone Electronic Cylindrical Locksets
with Privacy

The SDC E75 Privacy is an indoor/outdoor standalone electronic battery powered solution, providing controlled access for basic and multi-level convenience. The privacy function locks the keypad by engaging the Privacy Button on the inside, and the red LED on the outside flashes to indicate room occupation. Turning the inside lever upon exiting deactivates the Privacy function. In case of emergency, the Privacy function can be over-ridden via Key or Master Code. Prox Reader version also available.

The E75 Privacy is the perfect, low-cost standalone solution for new or retrofitting of Service Station, Convenience Store, Fast Food or Coffee House restroom facilities - no wires to pull or power supplies to add. It’s also a cost-effective addition to educational or corporate campuses to provide a privacy function to board rooms, counseling rooms and meeting spaces.

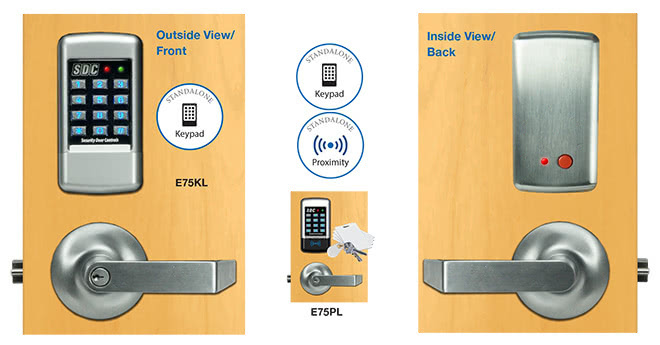

E75KL Digital Keypad with Privacy Function

E75PL Digital Keypad with Prox Reader and Privacy Function

u Features
  • Keypad Programmable
  • 3,000 Users, 32 Temporary Users
  • 4 to 6 Digit PIN Codes
  • 32 Access Groups, Schedules
  • 32 Holidays
  • 4 Authority Levels
    (Admin, Manager, Supervisor, Normal User)
  • Vandal Resistant Single-Button Privacy Mode Activation
  • Audible and Visual Privacy Mode Confirmation
  • Activation of Privacy Mode Locks Out Keypad
  • Turning Inside Lever Deactivates Privacy Mode
  • Privacy Mode Override by Key or Master Code
  • Keypad Tamper Lockout
  • Battery Powered (4AA)
  • Blue Backlit Cast Metal Keys
  • Weather & Vandal Resistant
  • Retrofit Existing Lock Door Prep
  • Motorized SDC Cylindrical Lockset
  • Heavy Duty ANSI Grade 1
  • Vandal Resistant Lever Clutch Mechanism
