E75 Series

Standalone Electronic Cylindrical Locksets

E75K, E75P and E75PS models standalone locksets are keypad or PC software programmable, and combine multiple access technology with efficient motorized locksets. An optional passage mode feature comes standard.

E75KL and E75PL models feature a privacy function that locks the keypad by engaging the privacy button on the inside, and the red LED on the outside flashes to indicate room occupation. Turning the inside lever upon exiting deactivates the privacy function. In case of emergency, the privacy function can be overridden via key or master code.

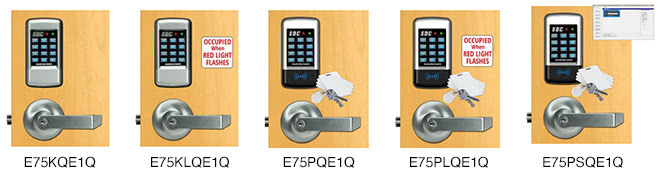

E75K Standalone Cylindrical Lockset, Keypad Only

E75KL Standalone Cylindrical Lockset, Keypad with Privacy

E75P Standalone Cylindrical Lockset, Keypad with Proximity Reader

E75PL Standalone Cylindrical Lockset, Keypad, Proximity Reader & Privacy

E75PS Standalone Cylindrical Lockset, Keypad, Proximity Reader & Software

Point-and-click Microsoft PC-based software
  • Supports up to 1,000 unique doors
  • Manage up to 3,000 unique users and credentials
  • Manage individual door parameters, access schedules, user groups, holidays, temporary users, and more...
u Features
  • Keypad programmable
  • 3,000 users, 32 temporary users
  • 4 to 6 digit PIN codes
  • 32 access groups, schedules and holidays
  • 4 authority levels
  • Keypad tamper lockout
  • Mechanical key override
  • Battery powered (4 AA)
  • Blue backlit cast metal keys
  • Weather & vandal resistant
  • Retrofits existing lock door prep
  • Motorized SDC cylindrical lockset
  • Vandal resistant lever clutch mechanism
  • Request-to-exit (REX)
  • Door position status (DPS)
  • Visual status indicators (LED)
